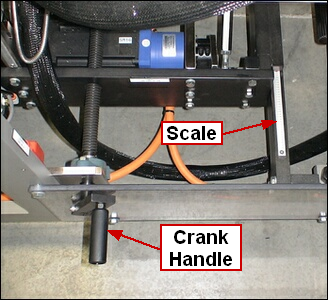

Using crank handle, adjust scale to the value shown on the View Changeover Adjustments page for this location.
|
|

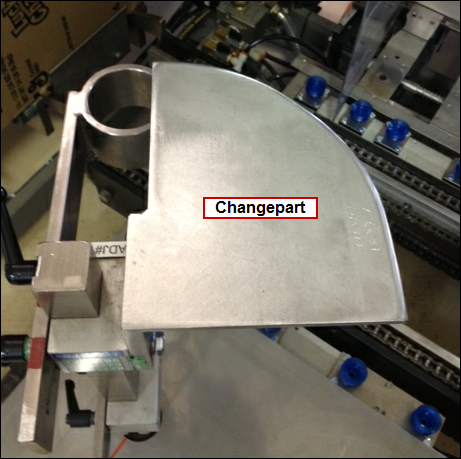

Loosen quick handles and replace part according to the value shown on the View Changeover Adjustments page for this location. Retighten quick handles!
|
|
Loosen quick handles and adjust scale to the values shown on the View Changeover Adjustments page for these locations. Retighten quick handles!
|
|

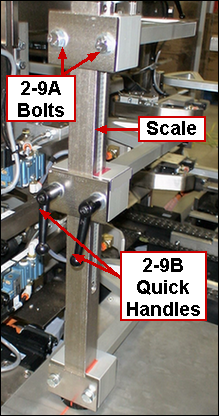

For 2-9A, loosen bolts or quick handles and adjust to the value shown on the View Changeover Adjustments page for this changeover location. Retighten bolts! For 2-9B, loosen quick handles and adjust scale to the value shown on the View Changeover Adjustments page for this changeover location. Retighten quick handles!
|
|

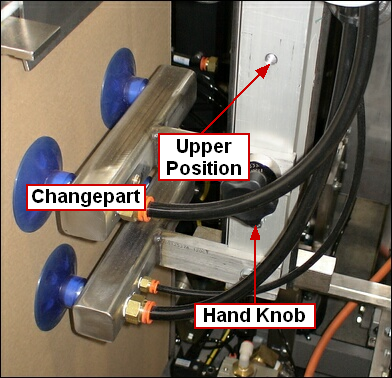

Unscrew hand knob and move part to value shown on the View Changeover Adjustments page for this location. Replace hand knob!
|
|

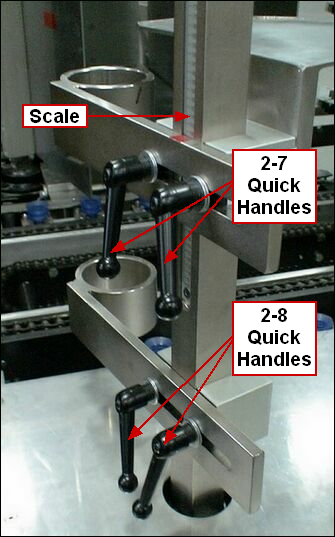

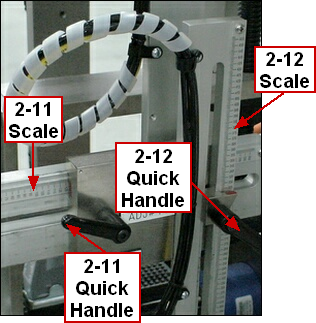

Loosen quick handles and adjust scales to the values shown on the View Changeover Adjustments page for these locations. Retighten quick handles!
|
|
Adjust valves according to the values shown on the View Changeover Adjustments page for these locations.
NOTE: If valve is inline with hose, the valve is ON.
|
|

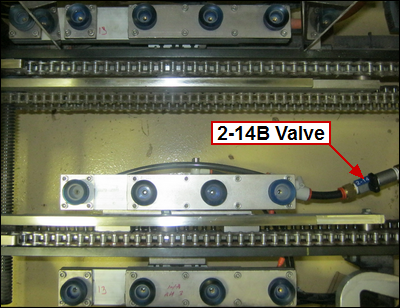

Adjust valve according to the value shown on the View Changeover Adjustments page for this location.
NOTE: If valve is inline with hose, the valve is ON.
|
|

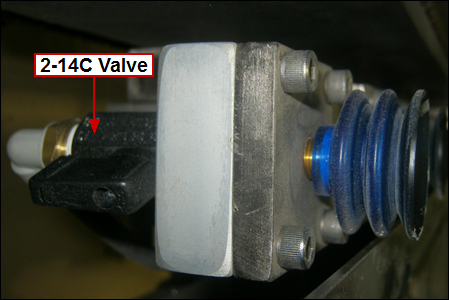

Adjust valve according to the value shown on the View Changeover Adjustments page for this location.
NOTE: If valve is inline with hose, the valve is ON.
|
|
Remove or install parts according to the value shown on the View Changeover Adjustments page for this location. Tighten hand knobs underneath transfer area.
|
|

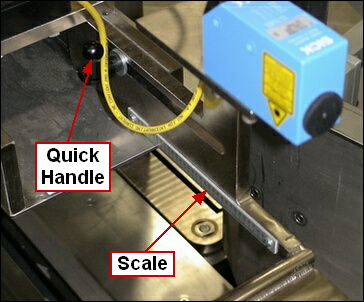

Loosen quick handle and adjust scale to the value shown on the View Changeover Adjustments page for this location. Retighten quick handle!
|
|

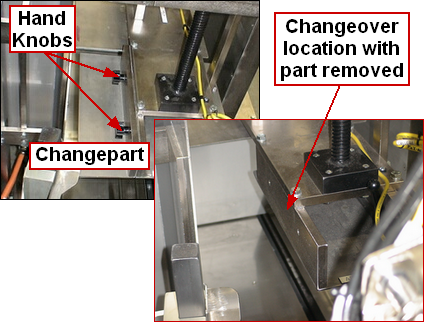

Remove or install part according to the value shown on the View Changeover Adjustments page for this location. Tighten hand knobs if installing!
|
|
Remove and install part according to the value shown on the View Changeover Adjustments page for this location.
|
|

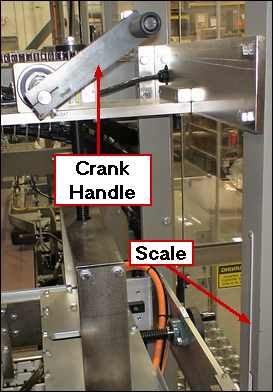

Using crank handle, adjust scale to the value shown on the View Changeover Adjustments page for this location.
|
|

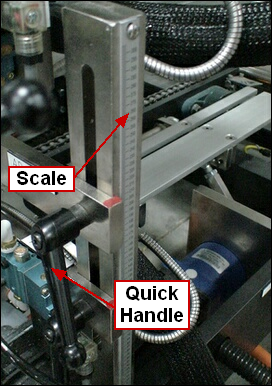

Loosen quick handle and adjust scale to the value shown on the View Changeover Adjustments page for this location. Retighten quick handle!
|
|
Loosen quick handle and adjust scale to the value shown on the View Changeover Adjustments page for this location. Retighten quick handle!
|
|
Loosen quick handle and adjust scale to the value shown on the View Changeover Adjustments page for this location. Retighten quick handle!
|
|

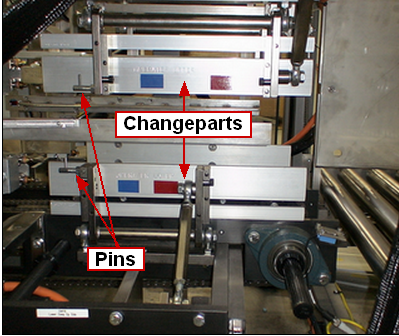

Lift pins and replace the parts according to the value shown on the View Changeover Adjustments page for this location. Reset pins!
|
Using crank handle, adjust scale to the value shown on the View Changeover Adjustments page for this location.
|
