The configuration of each solenoid valve controlled actuator is contained on this screen. Changing the configuration of a valve can greatly affect how the machine functions. For instance, a solenoid valve controlling vacuum must have the configuration data of a vacuum valve. A vacuum controlling solenoid valve must also have the A Sensor activated because a vacuum sensor is connected to this input. Thus, the “A” Time is the time allowed for a vacuum to be made. If a cylinder is slowed via the flow controls and the cylinder does not make the cylinder switch in the time displayed in ‘sensor time’, then the cylinder will give a “Jam” fault. If it is desired to slow a cylinder, make sure that the time for that direction is raised to accommodate the slower action time.
Solenoid Valve Parameters Fields

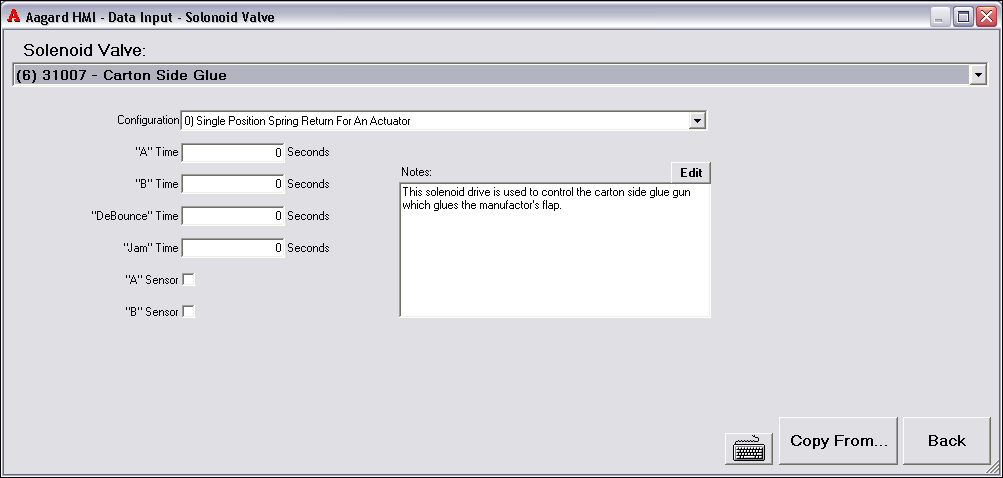

Solenoid Valve Parameter Entry Fields
The solenoid valve parameters that can be specified for a specific solenoid valve are Configuration, "A" Time, "B" Time, "DeBounce" Time, "Jam" Time, "A" Sensor, and "B" Sensor. Click on a field for more information
|
|
