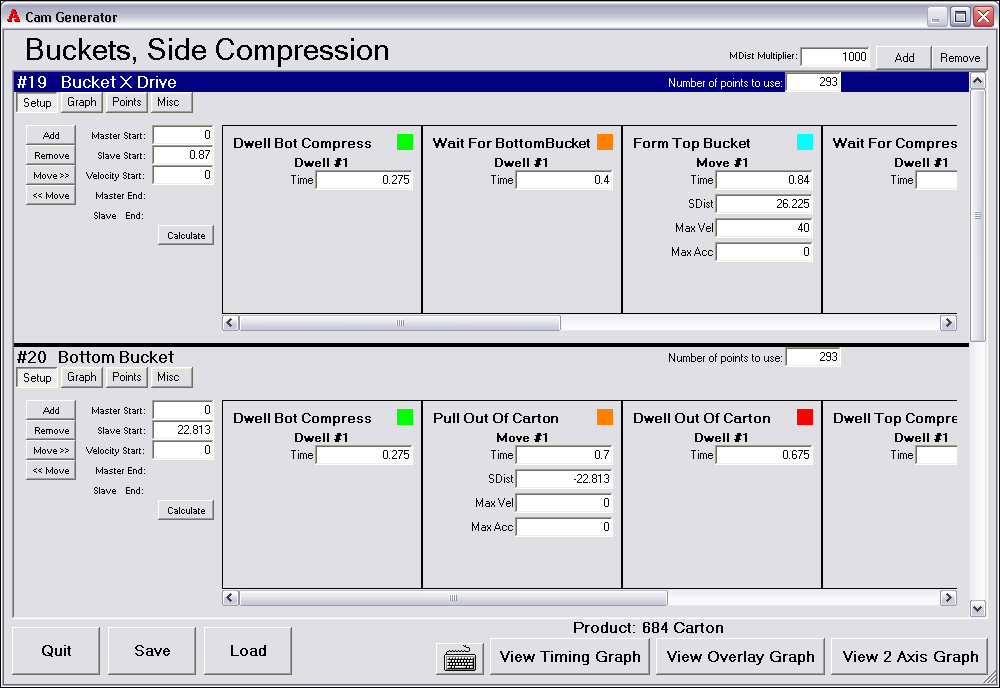

This is the Cam Generator Main Screen. This is where all Servo Drive Cams are made and edited. Once changes are complete, the generated positions are placed into the HMI database. A product download will be needed for the modifications to take effect. The Product Download will then load the generated positions to create the new cam.

Cam Generator has different ways the created cam can be viewed, if desired. The Cam Generator will default to the Setup Viewing Feature shown on the Cam Generator Main Screen. Other possible viewing features are Graph and Points. There is also a Misc Viewing Feature, which allows notes to be assigned to each cam.
